4200 Cable Tester
The Cirris 4200 cable tester combines the powerful Cirris OS software with the intuitive Cirris Adapter System to create a capable tester that accurately analyses cables for opens, shorts, miswires, and other errors.

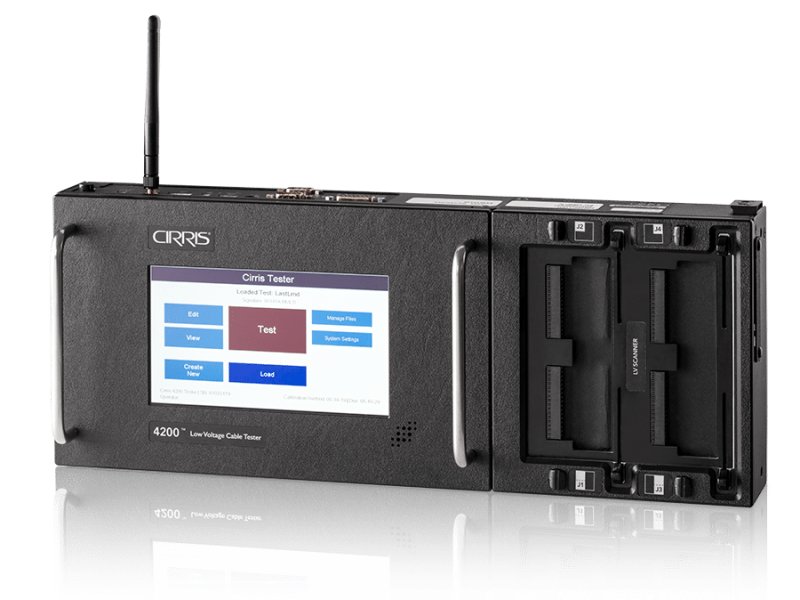

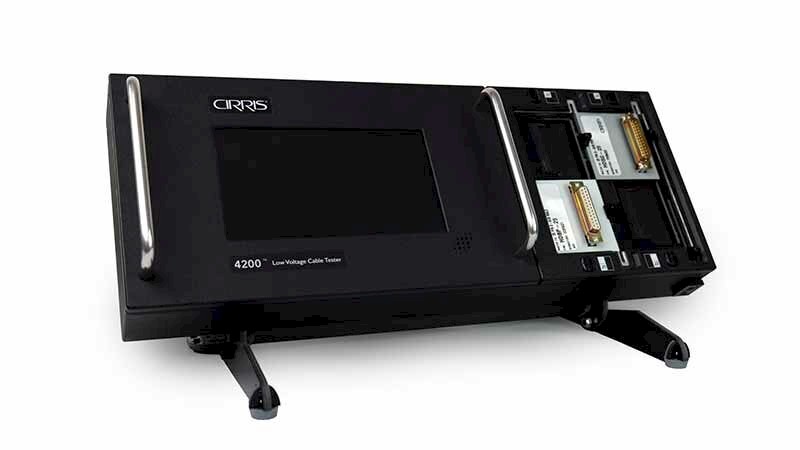

- Compact benchtop design with a 7" colour capacitive touchscreen

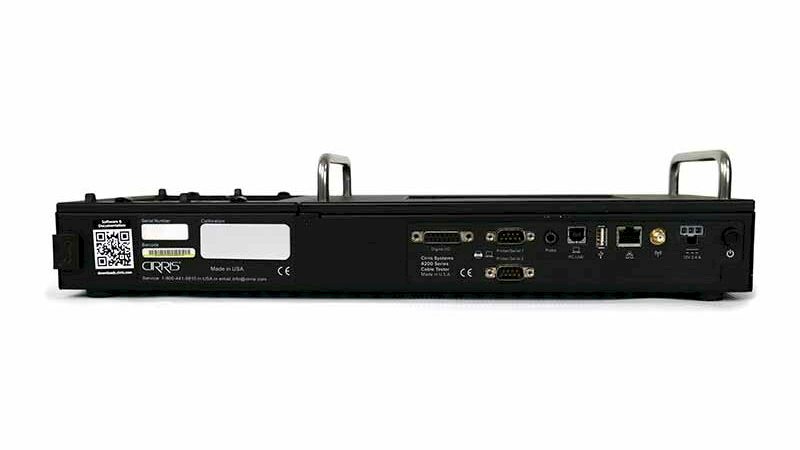

- Wired and wireless ethernet — integrates with Cirris Hub software to share test programs and network printers
- Tests continuity, isolation, opens, miswires, resistors, diodes, capacitors, and 4-wire Kelvin resistance measurements

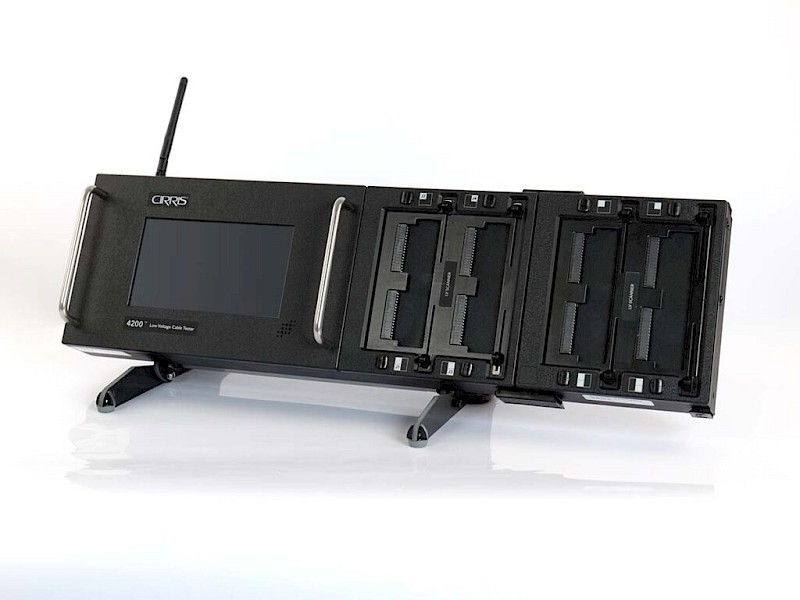

- 128 test points standard, expandable to 1024 in 128-point increments
- Cirris Adapter System for fast setup with a wide range of connector types
- Interface languages: English, German, Spanish, and French
- Optional PC control via Easy-Wire® software for expanded test control, archiving, and reporting
- Optional Digital IO, scripting, and data collection
Specification
Value
Test Points (base)
128
Test Points (max)
1024 (in 128-point increments)
LV Test Voltage
4 V max
LV Current (2-wire)
3 μA to 6 mA
LV Resistance (2-wire)
0.1 Ω to 100 kΩ ±1% ±0.1 Ω; 100 kΩ to 5 MΩ ±10%
LV Current (4-wire)
1 mA to 1 A
LV Resistance (4-wire)
0.005 Ω to 10 Ω ±2% ±0.005 Ω
Resistors
0.1 Ω to 100 kΩ ±1% ±0.1 Ω; 100 kΩ to 5 MΩ ±10%
Capacitors
5 nF to 100 μF ±10% ±0.02 nF
Digital I/O (standard)
4 inputs / 6 outputs, 24 V, open collector
Display
7" colour capacitive touchscreen (800×480)
Memory
8 GB internal
Power
100–240 V~, 50–60 Hz, 1.2 A
Main Unit Dimensions
17.4 × 2.5 × 6.7 in (44.1 × 6.4 × 17.0 cm)
Main Unit Weight
7.10 lb (3.22 kg)
