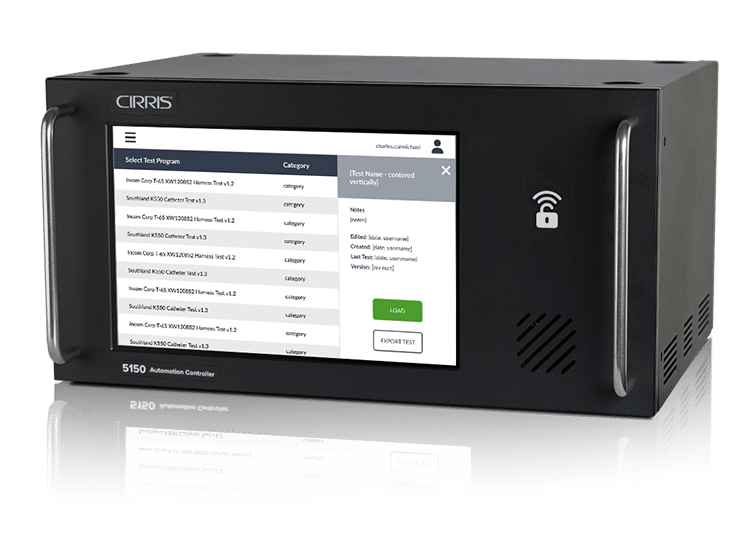

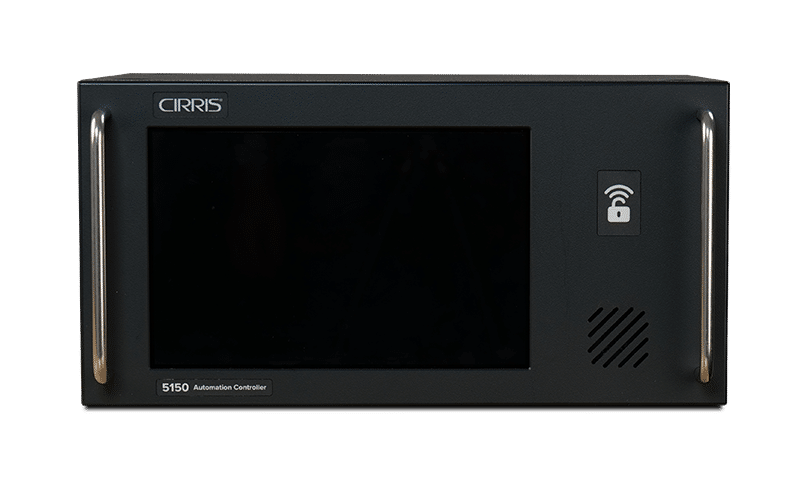

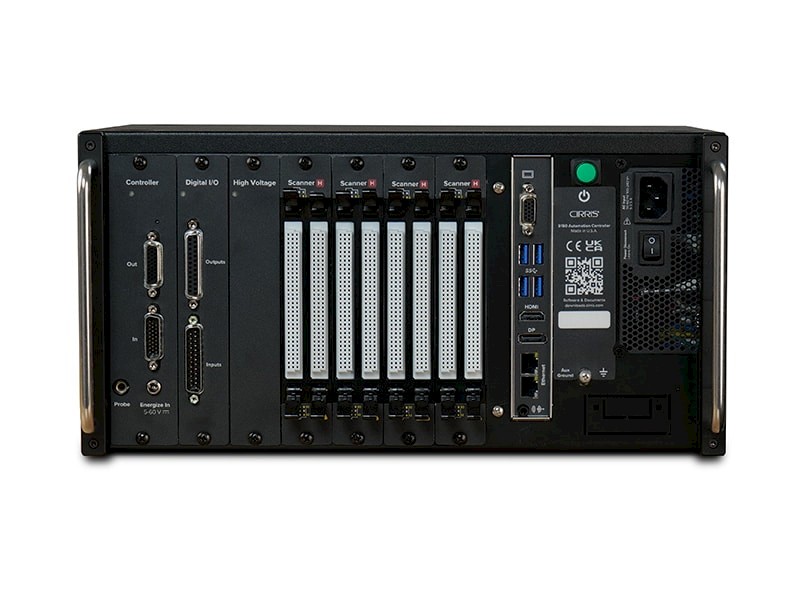

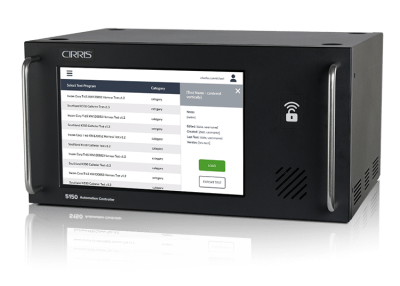

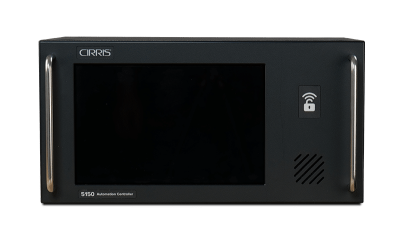

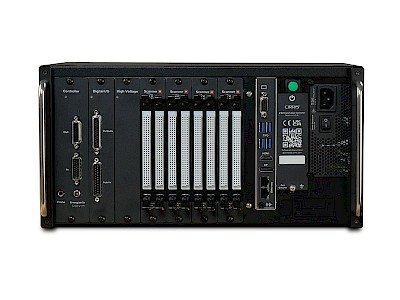

5150 Cable Tester & Automation Controller
The Cirris 5150 Cable Tester & Automation Controller is designed for precision and efficiency. With Cirris High Speed Test Points, it delivers rapid low voltage testing and reliable high voltage tests. Advanced Test Points offer extensive measurement capabilities, making it suitable for the most demanding applications.
- Supports multiple automation communication protocols including ProfiNET, EtherNet/IP, TwinCAT, OPC-UA, MQTT, and Modbus
- Optional Digital I/O modules for enhanced control
- Internal sensors monitor temperature and humidity
- RFID reader for secure user identification
- Cirris AST Software for customised test processes and seamless automation integration
- LED indicators and modular design for easy serviceability
- Safety interlocks for robust protection during testing
- Integrated Windows PC with network data sharing, printer and peripheral connectivity
- Flexible display supports touchscreen and external monitors
Specification
Value
Test Points
64 to 768 points (in 64 point increments)
LV Test Voltage (2-wire)
3.3 V standard
LV Test Current (2-wire)
0.1 μA to 10 mA
LV Resistance (2-wire)
0.1 Ω to 10 MΩ ±2% ±0.1 Ω
LV Test Current (4-wire)
0.1 μA to 2 A
LV Resistance (4-wire)
0.001 Ω to 10 MΩ ±2% ±0.001 Ω
HV Insulation Test Voltage
10 to 1500 VDC ±5% ±5 V
HV Insulation Resistance
5 MΩ to 3 GΩ ±10% (optional 10 GΩ)
DWV Voltage
10 to 1500 VDC or 10 to 1070 VAC ±5% ±5 V
DWV Current Limit
10 μA to 2.5 mA (DC or AC RMS)
HV Energy Limit
35 mJ
Digital I/O (Sourcing)
16 inputs, 16 outputs, 12–24 V
Digital I/O (Sinking)
20 configurable I/O, 8 outputs, 3.3–24 V
Display
10.1 Full-Colour Graphic Touch Screen
OS
Windows 11 (integrated PC)
Power
115 / 230 V 50/60 Hz
Dimensions (W×H×D)
15.0" × 7.7" × 12.9" (38.1 × 19.5 × 32.8 cm)
Weight
25 lbs (11.34 kg)
"
The Cirris 5150 Cable Tester & Automation Controller is designed for precision and efficiency. With Cirris High Speed Test Points, it delivers rapid low voltage testing and reliable high voltage tests. Advanced Test Points offer extensive measurement capabilities, making it suitable for the most demanding applications.
- Supports multiple automation communication protocols including ProfiNET, EtherNet/IP, TwinCAT, OPC-UA, MQTT, and Modbus
- Optional Digital I/O modules for enhanced control
- Internal sensors monitor temperature and humidity
- RFID reader for secure user identification
- Cirris AST Software for customised test processes and seamless automation integration
- LED indicators and modular design for easy serviceability
- Safety interlocks for robust protection during testing
- Integrated Windows PC with network data sharing, printer and peripheral connectivity
- Flexible display supports touchscreen and external monitors
| Specification | Value |
|---|---|
| Test Points | 64 to 768 points (in 64 point increments) |
| LV Test Voltage (2-wire) | 3.3 V standard |
| LV Test Current (2-wire) | 0.1 μA to 10 mA |
| LV Resistance (2-wire) | 0.1 Ω to 10 MΩ ±2% ±0.1 Ω |
| LV Test Current (4-wire) | 0.1 μA to 2 A |
| LV Resistance (4-wire) | 0.001 Ω to 10 MΩ ±2% ±0.001 Ω |
| HV Insulation Test Voltage | 10 to 1500 VDC ±5% ±5 V |
| HV Insulation Resistance | 5 MΩ to 3 GΩ ±10% (optional 10 GΩ) |
| DWV Voltage | 10 to 1500 VDC or 10 to 1070 VAC ±5% ±5 V |
| DWV Current Limit | 10 μA to 2.5 mA (DC or AC RMS) |
| HV Energy Limit | 35 mJ |
| Digital I/O (Sourcing) | 16 inputs, 16 outputs, 12–24 V |
| Digital I/O (Sinking) | 20 configurable I/O, 8 outputs, 3.3–24 V |
| Display | 10.1 Full-Colour Graphic Touch Screen |
| OS | Windows 11 (integrated PC) |
| Power | 115 / 230 V 50/60 Hz |
| Dimensions (W×H×D) | 15.0" × 7.7" × 12.9" (38.1 × 19.5 × 32.8 cm) |
| Weight | 25 lbs (11.34 kg) |
"
