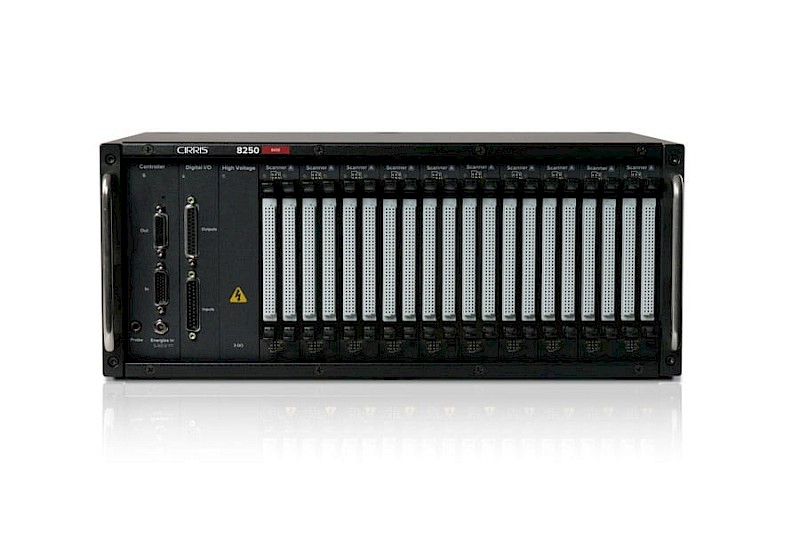

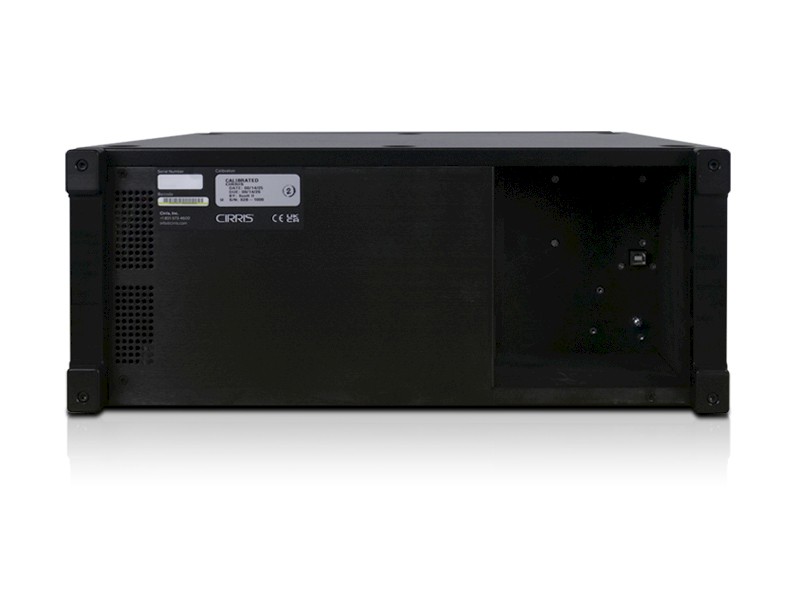

8250 High Voltage Cable Tester

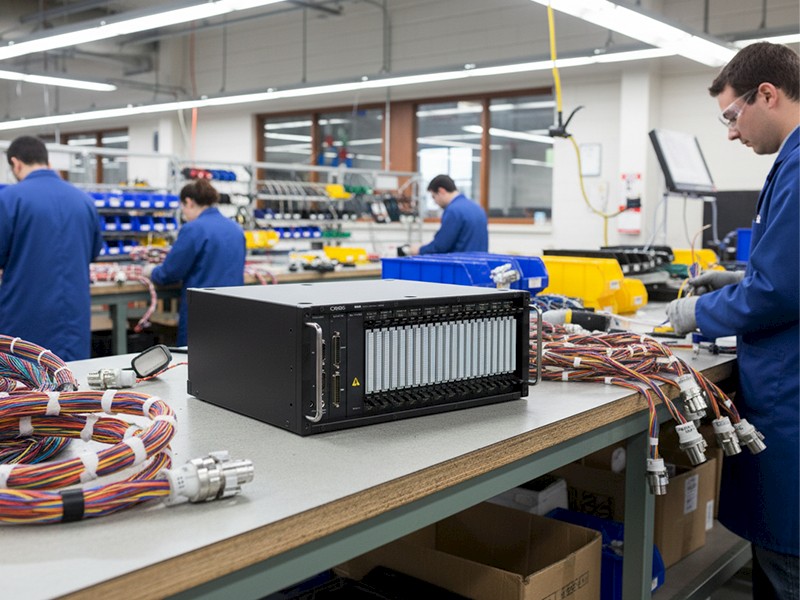

The 8250 delivers advanced high voltage testing for demanding applications. Designed for complex assemblies such as harnesses and backplanes, the 8250 combines modular scalability with advanced capabilities to meet the demands of modern production environments.
- Fast and intuitive programming with options to auto-learn samples, create programs via the user interface, or import existing test files
- Active component testing support
- Seamless integration with external instruments including high-capacity power supplies and meters
- Modular base units and expansions to distribute test points up to 200 feet, minimise adapter cable lengths, and reduce costs

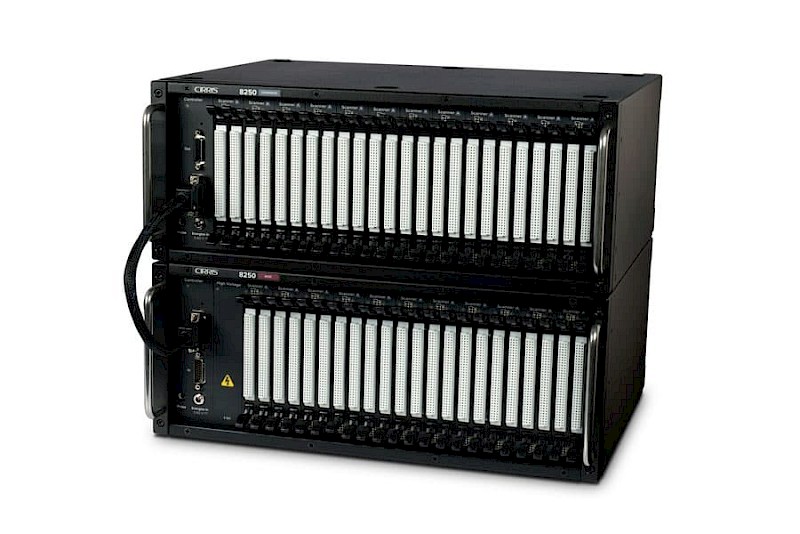

- Multiple units can be combined for large assemblies or reconfigured for smaller setups without additional hardware
- High-speed test points for detecting intermittent connections using solid-state circuitry
- Flex Test Points combine power and measurement in one module — energising and testing in a single step
- Optional digital I/O (sourcing or sinking) for interfacing with light curtains, safety switches and other external devices
- Optional API and OPC UA support for integration with external applications and automated workflows
- Built-in temperature and humidity monitoring
The 8250 is a direct replacement for the CH2 and is fully compatible with existing cabling, adapters, and test programs.
Specification
Value
Test Points
64 to 100,000+ (in 64-point increments)
LV Test Voltage (2-wire)
3.3 V standard
LV Test Current (2-wire)
0.1 μA to 10 mA
LV Resistance (2-wire)
0.1 Ω to 10 MΩ ±2% ±0.1 Ω
LV Test Current (4-wire)
0.1 μA to 2 A
LV Resistance (4-wire)
0.001 Ω to 10 MΩ ±2% ±0.001 Ω
HV Insulation Test Voltage
10 to 1500 VDC ±5% ±5 V
HV Insulation Resistance
5 MΩ to 3 GΩ ±10% (optional 10 GΩ)
DWV Voltage
10 to 1500 VDC or 10 to 1070 VAC ±5% ±5 V
DWV Current Limit
10 μA to 2.5 mA (DC or AC RMS)
HV Energy Limit
35 mJ
HV Charge Limit
45 μC
Digital I/O (Sourcing)
16 inputs, 16 outputs, 12–24 V
Digital I/O (Sinking)
20 configurable I/O, 8 outputs, 3.3–24 V
PC Requirements
Windows 11 Pro®, 2.0 GHz min., 15 GB HDD, 4 GB RAM, USB 2.0/3.0
Power
115 / 230 V 50/60 Hz
Dimensions (W×H×D)
17.35 × 7.14" × 13.65" (44.07 × 18.14 × 34.67 cm)
Weight
40 lbs (18 kg) fully loaded
"
