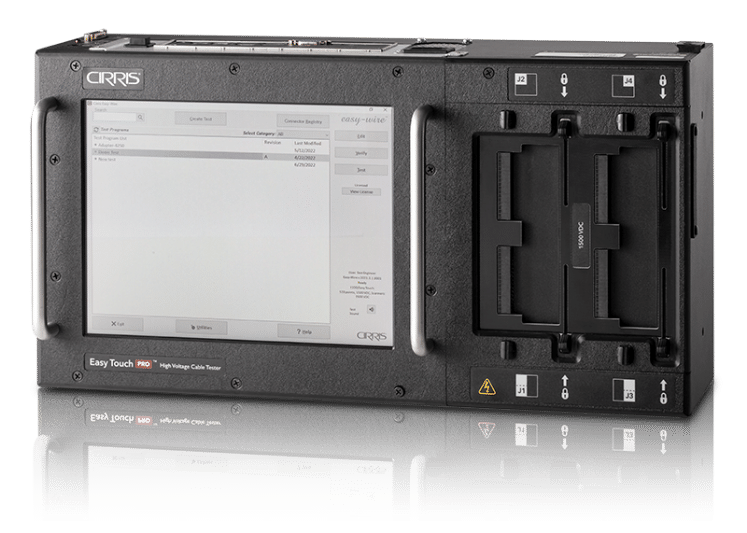

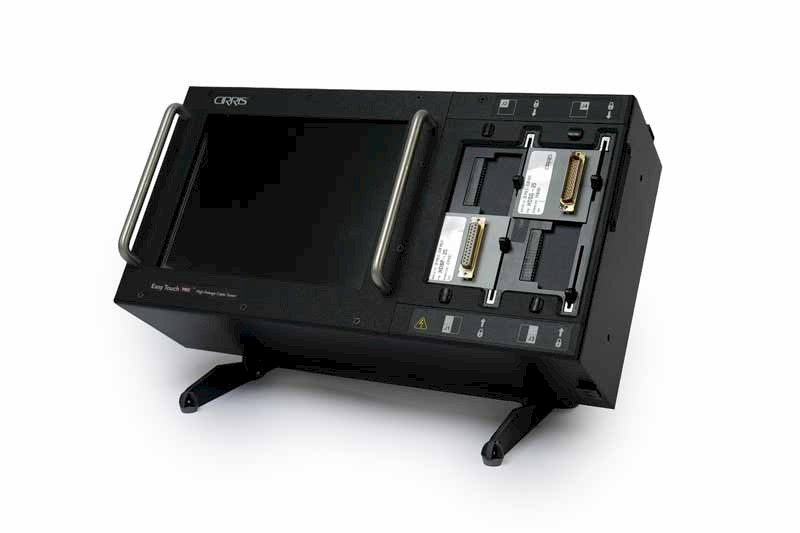

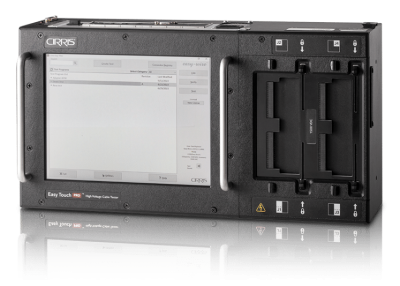

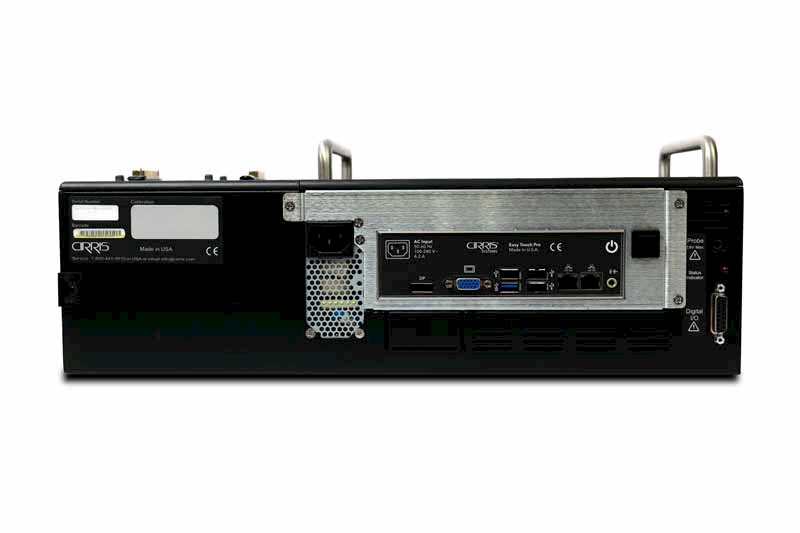

Easy-Touch Pro High Voltage Cable Tester
The Easy-Touch Pro is a self-contained high voltage cable tester designed for easy integration within your manufacturing process. With an integrated Windows® OS and Cirris software, this tester provides a reliable combination of function and flexibility.
- High voltage dielectric withstand (DW) and insulation resistance (IR) testing up to 1500 VDC (2000 VDC and 1000 VAC optional)
- Tests continuity, isolation, resistors, diodes, capacitors, split twisted pairs, and 4-wire resistance measurements
- Detects error location for opens and shorts

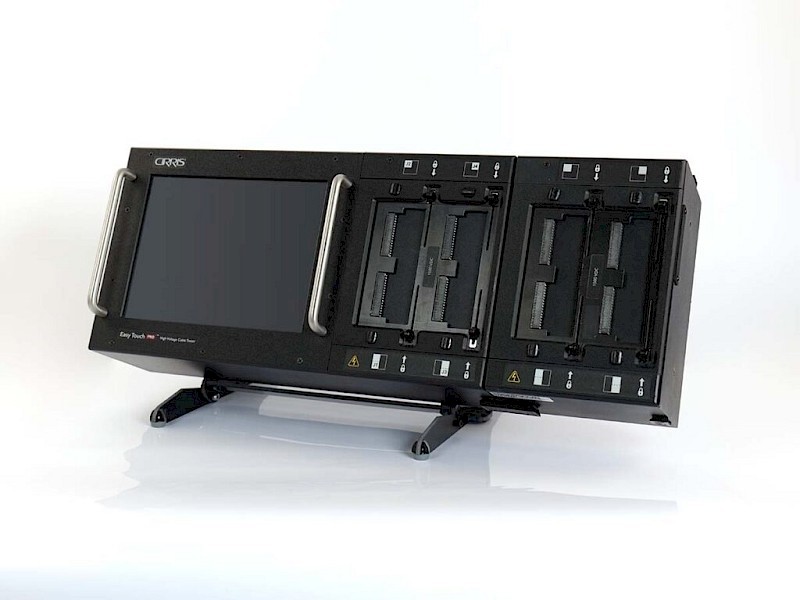

- Expandable in 128-point increments up to 1024 test points
- Integrated Windows PC with 10.4" full-colour capacitive touchscreen display
- Cirris interchangeable adapter system for a wide range of connector types

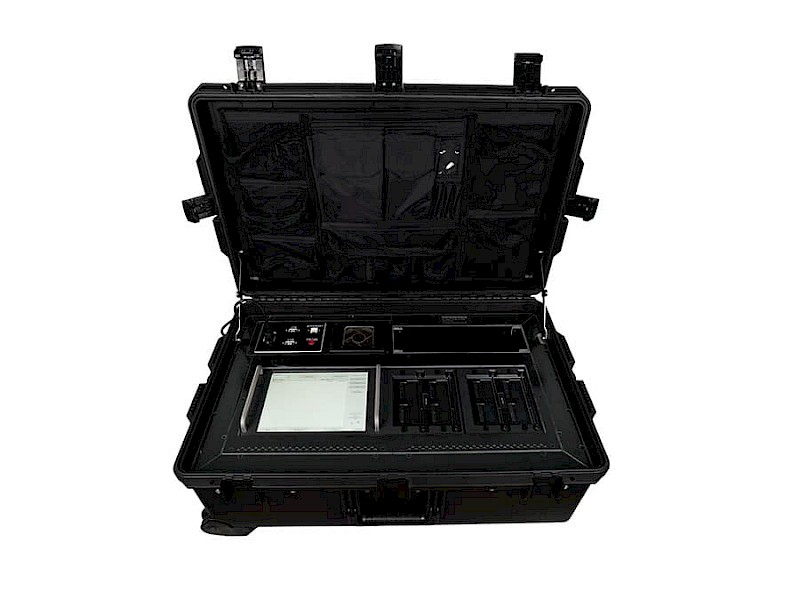

- Portable — independent system that can move around the production floor
- Optional Digital IO, OPC UA, API, and AST automation software for factory integration
- Powered by Easy-Wire® software
Specification
Value
Test Points (base)
128 points standard (64-point option available)
Test Points (max)
Up to 1024 (in 128-point increments)
LV Test Voltage
4 VDC max
LV Current (2-wire)
3 μA to 6 mA
LV Resistance (2-wire)
0.1 Ω to 100 kΩ ±1% ±0.1 Ω; 100 kΩ to 5 MΩ ±10%
LV Current (4-wire)
1 mA to 1 A
LV Resistance (4-wire)
0.001 Ω to 10 Ω ±2% ±0.001 Ω
HV Insulation Voltage
100 to 1500 VDC ±5% (2000 VDC optional)
HV Insulation Resistance
5 MΩ to 1000 MΩ ±10%
DWV DC Voltage
50 to 1500 VDC (2000 VDC optional)
DWV AC Voltage (optional)
50 to 1000 VAC
DWV Current Limit
0.1 mA to 1.5 mA ±5%
HV Energy Limit
35 mJ
Digital I/O (optional)
4 inputs, 6 outputs, 24 V max, open collector (sink)
Display
10.4" full-colour capacitive touchscreen
OS
Windows 11® (integrated PC)
Power
115 / 230 V 50/60 Hz
Main Unit Dimensions
17.5 × 5 × 9 in (44.5 × 13 × 23 cm)
Main Unit Weight
18 lbs (8.2 kg)
The Easy-Touch Pro is a self-contained high voltage cable tester designed for easy integration within your manufacturing process. With an integrated Windows® OS and Cirris software, this tester provides a reliable combination of function and flexibility.
- High voltage dielectric withstand (DW) and insulation resistance (IR) testing up to 1500 VDC (2000 VDC and 1000 VAC optional)
- Tests continuity, isolation, resistors, diodes, capacitors, split twisted pairs, and 4-wire resistance measurements
- Detects error location for opens and shorts
- Expandable in 128-point increments up to 1024 test points
- Integrated Windows PC with 10.4" full-colour capacitive touchscreen display
- Cirris interchangeable adapter system for a wide range of connector types
- Portable — independent system that can move around the production floor
- Optional Digital IO, OPC UA, API, and AST automation software for factory integration
- Powered by Easy-Wire® software
| Specification | Value |
|---|---|
| Test Points (base) | 128 points standard (64-point option available) |
| Test Points (max) | Up to 1024 (in 128-point increments) |
| LV Test Voltage | 4 VDC max |
| LV Current (2-wire) | 3 μA to 6 mA |
| LV Resistance (2-wire) | 0.1 Ω to 100 kΩ ±1% ±0.1 Ω; 100 kΩ to 5 MΩ ±10% |
| LV Current (4-wire) | 1 mA to 1 A |
| LV Resistance (4-wire) | 0.001 Ω to 10 Ω ±2% ±0.001 Ω |
| HV Insulation Voltage | 100 to 1500 VDC ±5% (2000 VDC optional) |
| HV Insulation Resistance | 5 MΩ to 1000 MΩ ±10% |
| DWV DC Voltage | 50 to 1500 VDC (2000 VDC optional) |
| DWV AC Voltage (optional) | 50 to 1000 VAC |
| DWV Current Limit | 0.1 mA to 1.5 mA ±5% |
| HV Energy Limit | 35 mJ |
| Digital I/O (optional) | 4 inputs, 6 outputs, 24 V max, open collector (sink) |
| Display | 10.4" full-colour capacitive touchscreen |
| OS | Windows 11® (integrated PC) |
| Power | 115 / 230 V 50/60 Hz |
| Main Unit Dimensions | 17.5 × 5 × 9 in (44.5 × 13 × 23 cm) |
| Main Unit Weight | 18 lbs (8.2 kg) |
