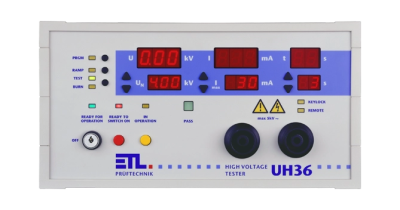

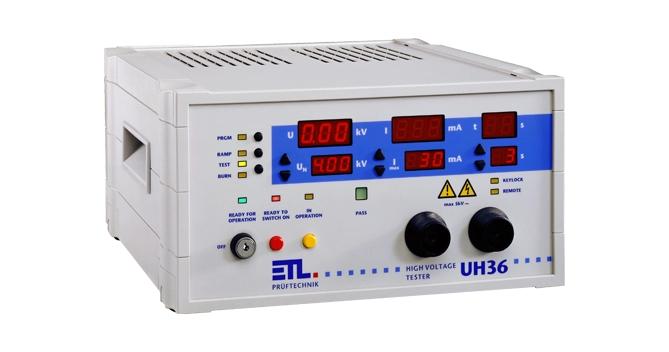

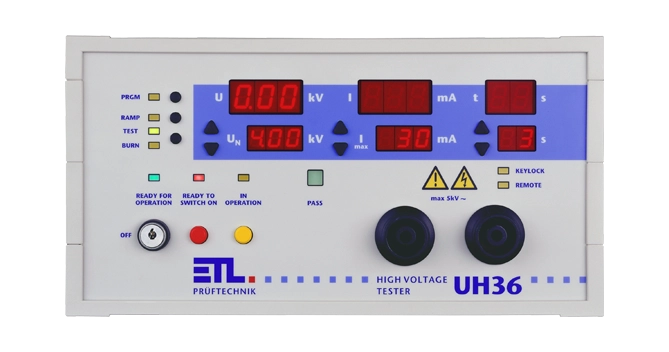

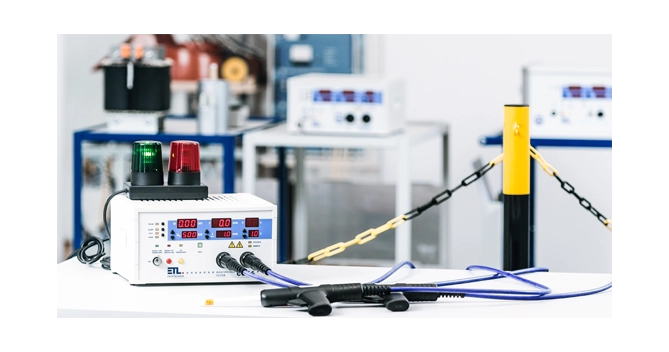

Hi Pot Tester UH36 - 5 kV AC / 100 mA / 500 VA
SKU: 200208
The UH36 is a single-channel high-voltage AC tester from ETL Prüftechnik's 36 Series, designed for standalone or remotely controlled hi-pot testing up to 5 kV AC. Potential-free outputs, patented source-sense 4-wire technology, and a dual-relay safety circuit make it suitable for both manual test pistol and automated production line applications.
- Over-limit trip and peak detection — detects even low-energy insulation spikes
- Freely programmable voltage ramp with configurable rise and fall times
- Key panel interlock with individually configurable lock settings
- 15 freely programmable parameter sets for instant recall
- Patented source-sense 4-wire monitoring — detects cable breaks and contact loss permanently (DE: 100 11 466.0 / 100 11 345.1; EU: 01 105 568.8 / 01 105 567.0)
- Test pistol automatic start — voltage only applies when both pistol tips are safely contacted
- High voltage outputs are potential-free, enabling safe test pistol operation per EN 50191
- Safety circuit with two forcibly guided safety relays
- Remotely controllable via ASCII, Windows DLL, .NET Framework Assembly, or ETL DataView software
- Acoustic, optical, and interface-based error signalling
- DAkkS calibration available as option
| Specification | Value |
|---|---|
| Test voltage range | 100–5000 V AC |
| Test voltage resolution | 10 V |
| Voltage accuracy | 1% of measured value ±2 digits |
| Output frequency | 50 Hz / 60 Hz (mains dependent) |
| Max output power | >500 VA |
| Max trip current range | 0.5–100 mA |
| Current resolution | 0.1 mA |
| Safety current limit | >200 mA above ~1100 V |
| Test time range | 1 s–99 min; continuous |
| Ramp time range | 0.5–99 s |
| HV outputs | 2 × potential-free 2-pole HV sockets (HVS06C) |
| Parameter sets | 15 freely programmable |
| Interfaces | Digital I/O, RS232, CAN |
| Input voltage | 230 V, 50/60 Hz ±10% |
| Max current consumption | 2 A |
| Dimensions (W×H×D) | 308 × 168 × 273 mm |
| Weight | approx. 15.8 kg |
| IP rating | IP20 |
| Operating temperature | +5 to +40 °C |
| Max altitude | 2000 m |
| Standards | EN 61010-1, EN 61326-1, EN 50191, EN 61000-3-2/3-3 |
