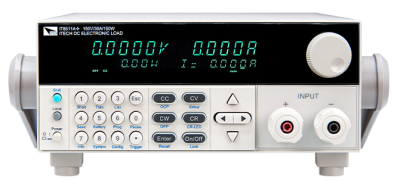

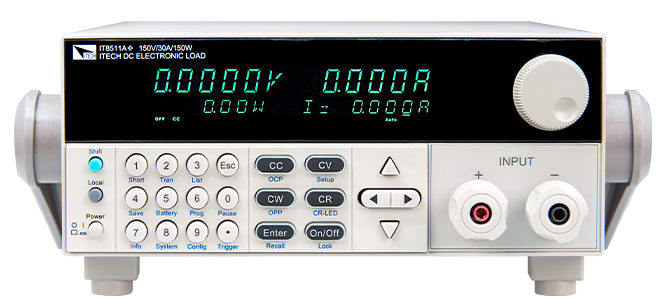

IT8511B+ Programmable DC Electronic Load

Product Introduction

IT8500+series (150W~3000W) single-channel programmable DC electronic loads are designed for middle & high-end applications.They can be offered as multiple solutions according to customer's design and testing requirements.The user can perform online voltage measurements and adjustments or simulate short circuit test using the simple keypad on the front panel. IT8500+ series DC loads are a versatile instrument for static and dynamic testing of power supplies,batteries,DC - DC converters,battery chargers,provides user the best testing solution.

Product Model List

Model	Voltage	Current	Power	Resolving	Accuracy	Interface	Size
IT8511A+	150V	30A	150W	0.1mV/1mA	(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	Optional RS232/USB/RS485	½ 2U
IT8511B+	500V	10A	150W	1mV/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	Optional RS232/USB/RS485	½ 2U
IT8512A+	150V	30A	300W	1mV/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	Optional RS232/USB/RS485	½ 2U
IT8512B+	500V	15A	300W	1mV/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	Optional RS232/USB/RS485	½ 2U
IT8512C+	120V	60A	300W	1mV/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	Optional RS232/USB/RS485	½ 2U
IT8512H+	800V	5A	300W	1mV/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	Optional RS232/USB/RS485	½ 2U
IT8513A+	150V	60A	400W	0.1mV/1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	Optional RS232/USB/RS485	½ 2U
IT8513B+	500V	30A	600W	1mV/1mA	0.02%+0.025 %FS/0.1%+0.1%FS	RS232/USB/RS485	½ 2U
IT8513C+	120V	120A	600W	0.1mV/1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	Optional RS232/USB/RS485	½ 2U
IT8514B+	500V	60A	1500W	0.1mV/1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	Built-in RS232/USB	2U
IT8514C+	120V	240A	1500W	1mV/0.1mA	±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)	Built-in RS232/USB	2U
IT8516C+	120V	240A	3000W	0.1mV/1mA	±(0.025%+0.025%FS)/ ±(0.1%+0.1%FS)	Built-in RS232/USB	4U

Features

• Four operating modes: CV, CC, CR, CP
• Battery test function, automatic test function, OPP test, OCP test function and CR-LED function.
• Dynamic mode up to 10 kHz
• Voltage measurement resolution up to 0.1mV / 0.1mA
• Remote sense
• Short circuit function
• Current monitoring function
• Power-off memory function
• 100 groups memory capacity
• Optional USB / RS232 / RS485 interface

* IT8514B+, IT8514C+ and IT8516C+ have built-in RS232 and USB interfaces.

Functions and Advantages

Dynamic test function The dynamic test operation allows the electronic load to be switched between the two setting parameters according to the setting rules. This function is used to test the dynamic characteristics of the power supply.

• Continuous mode: Under continuous mode, When the dynamic test operation is enabled, load will be continuously switched between the A value and the B value .
• Pulse mode: Under pulse mode, when the dynamic test operation is enabled, each receive a trigger signal, the load will switch to the B value, after maintaining the B pulse width time, switch back to the A value.
• Toggle mode: In the trigger mode, when the dynamic test operation is enabled, each time a trigger signal is received, the load is switched between the A value and the B value.

Battery discharge test function IT8500 + series electronic load can use constant current mode for battery discharge test. After the discharge test mode is selected, the test mode termination condition "switch off voltage value", "switch off capacity value" and "discharge time" can be set. When any of the three conditions is satisfied, the discharge is stopped and the electronic load is automatically switched is OFF state. Users can observe the battery voltage, time and battery discharge capacity during the test process.

Options & Accessories

CD (accessory) With user manual etc. AC power cord (accessory) IT-E121 (Optional) RS232 optical isolation comm.. IT-E122 (Optional) USB optical isolation commun. IT-E123 (Optional) RS485 optical isolation commun. IT-254 (Optional) Cooperate with IT8500+ to comp. IT-E151A (Optional) 19'' Rack mount kit IT-E151 (Optional) 19'' Rack mount kit IT-E30110-AB (Optional) 10A/1m/Alligator clip - Banana plug IT-E30110-BY (Optional) 10A/1m/Banana plug - Y terminals IT-E30312-YY (Optional) 30A/1.2m/Y terminal, a pair IT-E30320-YY (Optional) 30A/2m/Y terminal, a pair IT-E30615-OO (Optional) 60A/1.5m/round terminal, a pair IT-E31220-OO (Optional) 120A/2m/round terminal, a pair IT-E31220-OO (Optional) 120A/2m/round terminal, a pair IT-E32420-OO (Optional) 240A/2m/round terminal, a pair IT-E32410-OO (Optional) 240A/1m/round terminal, a pair IT-E33620-OO (Optional) 360A/2m/round terminal, a pair
