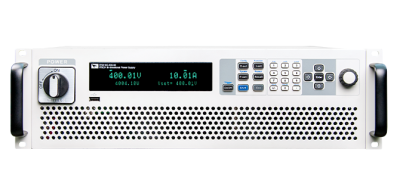

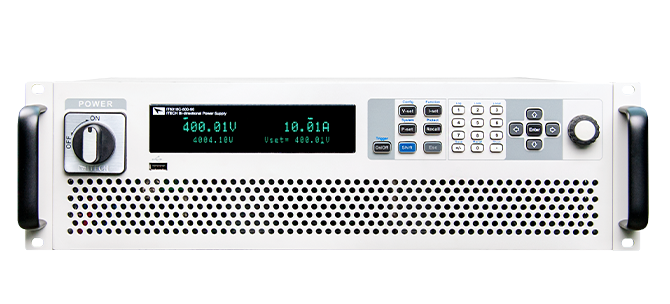

300V/450A/36kW bidirectional programmable DC power supply

Product Introduction

From the perspective of improving customer experience, ITECH launches a new incorporated product--IT6000B series. IT6000B integrates bidirectional power supply and regenerative electronic load into one 3U unit. It is also a very powerful one. Only a button is needed to switch between the bidirectional power supply and the regenerative electronic load. It can be used not only as a stand-alone powerful bidirectional power supply, as a source to provide power; but also as an independent regenerative electronic load, to absorb the consumed energy and feedback cleanly to the grid. IT6000B offers standard two-quadrants functionality. IT6000B provides 7 voltage ranges, up to 2250V, supports master-slave parallel with even current distribution up to 1152kW. Built-in waveform generator supports generating arbitrary waveforms, and imports LIST files for waveforms via USB interface. IT6000B is the combination of reliability, high efficient setting, safe and multiple measurement functions. IT6000B is a family of bi-directional, regenerative power system with excellent performance, extensively used in aspects of high power battery, automotive electronics, green energy, high speed testing etc.

Product Model List

Model	Voltage	Current	Power	Resolving	Accuracy	Interface	Size
IT6005C-80-150	80V	150A	5kW	0.001V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6010C-80-300	80V	300A	10kW	0.001V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6015C-80-450	80V	450A	15kW	0.001V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6030C-80-900	80V	900A	30kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	6U
IT6045C-80-1350	80V	1350A	45kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6060C-80-1800	80V	1800A	60kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6075C-80-2040	80V	2040A	75kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6090C-80-2040	80V	2040A	90kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6105C-80-2040	80V	2040A	105kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6120C-80-2040	80V	2040A	120kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6006C-300-75	300V	75A	6kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6012C-300-150	300V	150A	12kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6018C-300-225	300V	225A	18kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6036C-300-450	300V	450A	36kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	6U
IT6054C-300-675	300V	675A	54kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6072C-300-900	300V	900A	72kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6090C-300-1125	300V	1125A	90kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6108C-300-1350	300V	1350A	108kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6126C-300-1575	300V	1575A	126kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6144C-300-1800	300V	1800A	144kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6006C-500-40	500V	40A	6kW	0.01V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6012C-500-80	500V	80A	12kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6018C-500-120	500V	120A	18kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6036C-500-240	500V	240A	36kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	6U
IT6054C-500-360	500V	360A	54kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6072C-500-480	500V	480A	72kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6090C-500-600	500V	600A	90kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6108C-500-720	500V	720A	108kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6126C-500-840	500V	840A	126kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6144C-500-960	500V	960A	144kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6006C-800-25	800V	25A	6kW	0.01V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6012C-800-50	800V	50A	12kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6018C-800-75	800V	75A	18kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6036C-800-150	800V	150A	36kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	6U
IT6054C-800-225	800V	225A	54kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6072C-800-300	800V	300A	72kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6090C-800-375	800V	375A	90kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6108C-800-450	800V	450A	108kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6126C-800-525	800V	525A	126kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6144C-800-600	800V	600A	144kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6018C-1500-40	1500V	40A	18kW	0.1V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6036C-1500-80	1500V	80A	36kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	6U
IT6054C-1500-120	1500V	120A	54kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6072C-1500-160	1500V	160A	72kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6090C-1500-200	1500V	200A	90kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6108C-1500-240	1500V	240A	108kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6126C-1500-280	1500V	280A	126kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6144C-1500-320	1500V	320A	144kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6018C-2250-25	2250V	25A	18kW	0.1V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6036C-2250-50	2250V	50A	36kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	6U
IT6054C-2250-75	2250V	75A	54kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6072C-2250-100	2250V	100A	72kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6090C-2250-125	2250V	125A	90kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6108C-2250-150	2250V	150A	108kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6126C-2250-175	2250V	175A	126kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6144C-2250-200	2250V	200A	144kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U

Features

• Bi-directional – power supply and electronic load in one
• Stand-alone max. output power 144kW, expandable up to 1.152 MW by paralleling
• Voltage range: 0 to 2250V
• Current range: 0 to 2040A
• High power density up to 18kW in compact 3U rack space
• Bi-directional power transfer, seamless switch between sourcing and sinking
• High regenerative efficiency up to 95%
• Standard Built-in USB/CAN/LAN/digital IO communication interface, optional GPIB/analog & RS232
• Full protections: support OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection
• Support control loop priority mode setting , different loop speed can be set
• Built-in voltage curves comply with LV123, LV148, DIN40839, ISO-16750-2, SAEJ1113-11, LV124 and ISO21848 automotive standards
• Support photovoltaic I-V curves simulation function
• Built-in function generator, support arbitrary-waveform generating
• Adjustable output impedance

Functions and Advantages

Bi-directional energy, seamless transfer The IT6000C Series combines bi-directional power supply and regenerative load function in one. Unlike traditional power supplies and E-loads, for which there will be short transitions and inconsistencies in the middle of positive and negative current switching, IT6000C is a standard high-speed bidirectional power supply, enables high-speed source and sink current fast and continuous seamless switching, effectively avoiding voltage or current overshoot, and can be widely used in Energy storage device test, like batteries, cell packaging equipment and battery protection board testing . High energy regenerative efficiency The IT6000C series has a unique energy regenerative function that can regenerate electrical energy and then directly use it in the plant instead of consuming it in the form of heat. The regenerative efficiency can reach up to 95%, which not only will greatly reduce the user's electricity cost, but also avoid the using of air conditioning or expensive cooling systems. Application for solar array simulation IT6000C configured with optional ITECH SAS1000 Solar Array Simulation Software, users can easily use the software to output, measure, display the MPP tracking status of photovoltaic inverter in real time simulation and record value. Built-in EN50530 / Sandia NB/T32004 / C GC/GF004 /CGC/GF035 standard testing procedures, it is convenient for users to test the static and dynamic MPPT performance of PV inverters and generate reports. Solar simulation power supply also provides the shadow and table mode operation, the user can enter up to 4096 points array to edit any shielded IV curve to achieve dynamic shadow effect simulation and also can store 100 I-V curves under different irradiation and temperature to test the long-term maximum power tracking performance of photovoltaic inverters under different climatic conditions.

Options & Accessories

AC power cord (accessory) USB straight wire (accessory) Used for USB port communicatio... IT-E168/169(Optional) Parallel optical fiber kit Sin... IT-E165A-250/400/500(Optional)... Anti-reverse connection module... IT-E165B (Optional) Anti-electromotive force modul... SAS1000(Optional) Solar array simulation softwar.. FCS3000(Optional) Single channel fuel cell simul... BSS2000(Optional) Battery simulating software ba... IT-E166(Optional) GPIB IT-E167(Optional) RS232/Analog communication car... ITcabinet(Optional) ITcabinet 15U/27U/37U AC power cord(Optional) AC power cord, 5m IT-E30312(20)-YY(Optional) 30A/1.2m(2m)/Y terminal, a pai... IT-E30320-YY(Optional) 30A/2m/Y terminal, a pair of r... IT-E30615-OO(Optional) 60A/1.5m/Round terminal, a pai... IT-E31220-OO(Optional) 120A/2m/Round terminal, a pair... IT-E32420-OO(Optional) 240A/2m/Round terminal, a pair... IT-E32410(20)-OO(Optional) 240A/1m(2m)/Round terminal, a ... IT-E33620-OO(Optional) 360A/2m/Round terminal, a pair...
