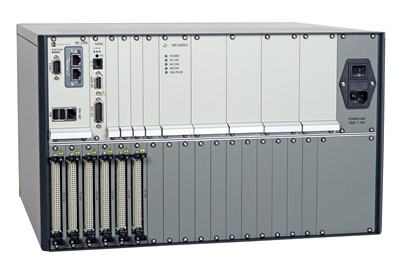

KT 630 Compact High Voltage Tester
- Stand-alone operation (No PC) with fast, easy operation. Or PC Control.
- Easy, self-learning of "known good assemblies"
- Comprehensive result reporting
- Operation language selectable
- Microsoft® network interface
- USB 2.0 interfaces
- 2 GB storage for test programs and result data (expandable)
- Remote maintenance via network
Perfect for automated production lines:
- Precise measurement electronics for the measurement of resistances and capacitances
- Solid 19" rack housing
- 3 x USB and network ports for easy data handling
- Up to 27 digital I/O for control
- All standard field bus systems available, CAN, Profi etc
- Cable of connector pin-length measurement
- Voltage measurement*
- LCR measurement bridge*
Specification Value Test Points Up to 1024 Insulation Test Voltage Up to 1500 VDC DWV Test Voltage Up to 1050 VAC / 1500 VDC Max Current 2 ADC Test Types Continuity, short circuit, component, insulation, DWV Storage 2 GB (expandable) Interface USB 2.0, Microsoft® network
- Stand-alone operation (No PC) with fast, easy operation. Or PC Control.
- Easy, self-learning of "known good assemblies"
- Comprehensive result reporting
- Operation language selectable
- Microsoft® network interface
- USB 2.0 interfaces
- 2 GB storage for test programs and result data (expandable)
- Remote maintenance via network
Perfect for automated production lines:
- Precise measurement electronics for the measurement of resistances and capacitances
- Solid 19" rack housing
- 3 x USB and network ports for easy data handling
- Up to 27 digital I/O for control
- All standard field bus systems available, CAN, Profi etc
- Cable of connector pin-length measurement
- Voltage measurement*
- LCR measurement bridge*
| Specification | Value |
|---|---|
| Test Points | Up to 1024 |
| Insulation Test Voltage | Up to 1500 VDC |
| DWV Test Voltage | Up to 1050 VAC / 1500 VDC |
| Max Current | 2 ADC |
| Test Types | Continuity, short circuit, component, insulation, DWV |
| Storage | 2 GB (expandable) |
| Interface | USB 2.0, Microsoft® network |
