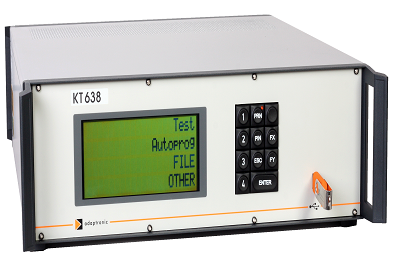

KT 638 High Speed HV Tester
- Stand-alone operation (No PC) with fast, easy operation. Or PC control.
- Easy, self-learning of "known good assemblies"
- Comprehensive result reporting
- Operation language selectable
- Fastest high voltage tester available
- Microsoft® network interface
- USB 2.0 interfaces Windows® Embedded CE®
- 2 GB storage for test programs and result data (expandable)
- Remote maintenance via network
Perfect tester for automated production lines:
- Solid 19" rack mount housing (lower depth)
- 3 x USB and network for easy data handling
- Up to 27 digital I/Os for control
- All standard field bus systems available, CAN, Profi etc
- Cable of connector pin-length measurement
- Voltage measurement*
- LCR measurement bridge*
Specification Value Test Points Up to 512 High Voltage Test Up to 1500 VDC Max Current 2 A DC Test Types Continuity, short circuit, component, high voltage Storage 2 GB (expandable) Interface USB 2.0, Microsoft® network Processor Windows® Embedded CE®
- Stand-alone operation (No PC) with fast, easy operation. Or PC control.
- Easy, self-learning of "known good assemblies"
- Comprehensive result reporting
- Operation language selectable
- Fastest high voltage tester available
- Microsoft® network interface
- USB 2.0 interfaces Windows® Embedded CE®
- 2 GB storage for test programs and result data (expandable)
- Remote maintenance via network
Perfect tester for automated production lines:
- Solid 19" rack mount housing (lower depth)
- 3 x USB and network for easy data handling
- Up to 27 digital I/Os for control
- All standard field bus systems available, CAN, Profi etc
- Cable of connector pin-length measurement
- Voltage measurement*
- LCR measurement bridge*
| Specification | Value |
|---|---|
| Test Points | Up to 512 |
| High Voltage Test | Up to 1500 VDC |
| Max Current | 2 A DC |
| Test Types | Continuity, short circuit, component, high voltage |
| Storage | 2 GB (expandable) |
| Interface | USB 2.0, Microsoft® network |
| Processor | Windows® Embedded CE® |
