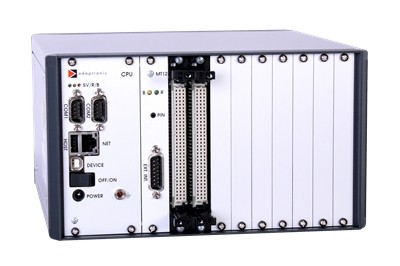

NT 210 Compact Tester
- Easy operation via PC with comprehensive control software via "NT Control"
- Extensive result reporting to file, to printer or via database connection*
- Extensive GUI display possibilities and tools for fault location in the unit under test (UUT)
- Easy, self-learning of "known good assemblies"
- Operation language selectable
- Microsoft® network interface
- Windows CE 6.0® on ARM® processor
- Remote maintenance via network
Perfect for all wiring test applications:
- Support of adapter LEDs enabling fast guidance and diagnostics
- Push-back test for troublesome connectors
- Guided assembly during wiring harnesses manufacture
- Compact footprint – space saving design
- Interfaces to control external apparatus such as cutter, marker etc.
Specification Value Test Points Up to 512 (expandable to 2048) Test Voltage Up to 12 VDC Max Current 10 mA Test Types Continuity, short circuit, component Interface Microsoft® network Processor ARM® (Windows CE 6.0®)
- Easy operation via PC with comprehensive control software via "NT Control"
- Extensive result reporting to file, to printer or via database connection*
- Extensive GUI display possibilities and tools for fault location in the unit under test (UUT)
- Easy, self-learning of "known good assemblies"
- Operation language selectable
- Microsoft® network interface
- Windows CE 6.0® on ARM® processor
- Remote maintenance via network
Perfect for all wiring test applications:
- Support of adapter LEDs enabling fast guidance and diagnostics
- Push-back test for troublesome connectors
- Guided assembly during wiring harnesses manufacture
- Compact footprint – space saving design
- Interfaces to control external apparatus such as cutter, marker etc.
| Specification | Value |
|---|---|
| Test Points | Up to 512 (expandable to 2048) |
| Test Voltage | Up to 12 VDC |
| Max Current | 10 mA |
| Test Types | Continuity, short circuit, component |
| Interface | Microsoft® network |
| Processor | ARM® (Windows CE 6.0®) |
