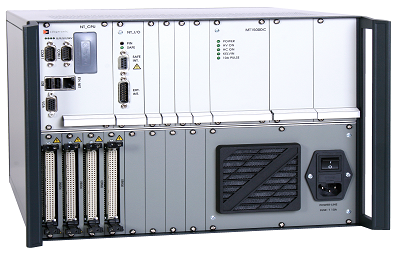

NT 637 High Voltage Test System
- Easy operation via PC with comprehensive control software via "NT Control"
- Extensive result reporting to file, to printer or via database connection*
- Extensive GUI display possibilities and tools for fault location in the unit under test (UUT)
- Remote maintenance
The NT 637 for well-focussed dedicated applications with up to 512 test points:
- Low start-up investment costs as well as low ongoing cost
- Easily expandable: additional measurement electronics (AC/DC), LCR measurement bridge, test point expansion via test point units (TPUs)
- Four-wire measurement from 100 µOhm upwards
- Insulation tests up to 10 G Ohm as standard
- Automatic harness test table support
Specification Value Test Points Up to 512 High Voltage Test 1500 V DC DWV Test Voltage Up to 1050 V AC / 1500 V DC Max Current 2 A DC Insulation Test Up to 10 G Ohm Four-wire Measurement From 100 µOhm Test Types Continuity, short circuit, component, insulation, DWV
- Easy operation via PC with comprehensive control software via "NT Control"
- Extensive result reporting to file, to printer or via database connection*
- Extensive GUI display possibilities and tools for fault location in the unit under test (UUT)
- Remote maintenance
The NT 637 for well-focussed dedicated applications with up to 512 test points:
- Low start-up investment costs as well as low ongoing cost
- Easily expandable: additional measurement electronics (AC/DC), LCR measurement bridge, test point expansion via test point units (TPUs)
- Four-wire measurement from 100 µOhm upwards
- Insulation tests up to 10 G Ohm as standard
- Automatic harness test table support
| Specification | Value |
|---|---|
| Test Points | Up to 512 |
| High Voltage Test | 1500 V DC |
| DWV Test Voltage | Up to 1050 V AC / 1500 V DC |
| Max Current | 2 A DC |
| Insulation Test | Up to 10 G Ohm |
| Four-wire Measurement | From 100 µOhm |
| Test Types | Continuity, short circuit, component, insulation, DWV |
