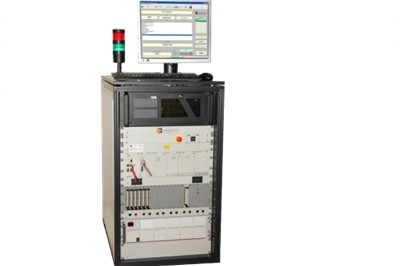

NT 700 High Voltage Tester
- Easy operation via PC with comprehensive control software via "NT Control"
- Extensive result reporting to file, to printer or via database connection*
- Extensive GUI display possibilities and tools for fault location in the unit under test (UUT)
- Remote maintenance
The NT 700 offers numerous expansion possibilities:
- Test point expansion up to 32,768 test points (depending on housing / cabinet size)
- Additional measurement electronics (AC/DC)
- LCR measurement bridge
- Four-wire measurement from 100 µOhm upwards
- Insulation tests up to 10 G Ohm as standard
- Automatic harness test table support
- Total integration of camera systems for visual tests
- ProfiNet, LIN-, CAN-, Mod-Bus TCP, other bus systems on request
Specification Value Test Points Up to 32,768 (expandable) Base Test Voltage Up to 25 VDC Low Voltage Test (optional) Up to 250 VDC High Voltage / DWV Test (optional) Up to 6000 VDC / 5000 VAC Insulation Test (optional) Up to 6000 VDC / 10 G Ohm Max Current (optional) 2 A DC Protective Earth Test (optional) Up to 25 A AC Four-wire Measurement From 100 µOhm Test Types Continuity, short circuit, component, insulation, DWV
- Easy operation via PC with comprehensive control software via "NT Control"
- Extensive result reporting to file, to printer or via database connection*
- Extensive GUI display possibilities and tools for fault location in the unit under test (UUT)
- Remote maintenance
The NT 700 offers numerous expansion possibilities:
- Test point expansion up to 32,768 test points (depending on housing / cabinet size)
- Additional measurement electronics (AC/DC)
- LCR measurement bridge
- Four-wire measurement from 100 µOhm upwards
- Insulation tests up to 10 G Ohm as standard
- Automatic harness test table support
- Total integration of camera systems for visual tests
- ProfiNet, LIN-, CAN-, Mod-Bus TCP, other bus systems on request
| Specification | Value |
|---|---|
| Test Points | Up to 32,768 (expandable) |
| Base Test Voltage | Up to 25 VDC |
| Low Voltage Test (optional) | Up to 250 VDC |
| High Voltage / DWV Test (optional) | Up to 6000 VDC / 5000 VAC |
| Insulation Test (optional) | Up to 6000 VDC / 10 G Ohm |
| Max Current (optional) | 2 A DC |
| Protective Earth Test (optional) | Up to 25 A AC |
| Four-wire Measurement | From 100 µOhm |
| Test Types | Continuity, short circuit, component, insulation, DWV |
