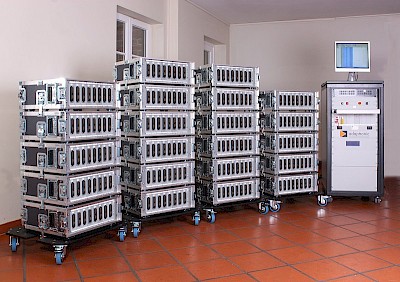

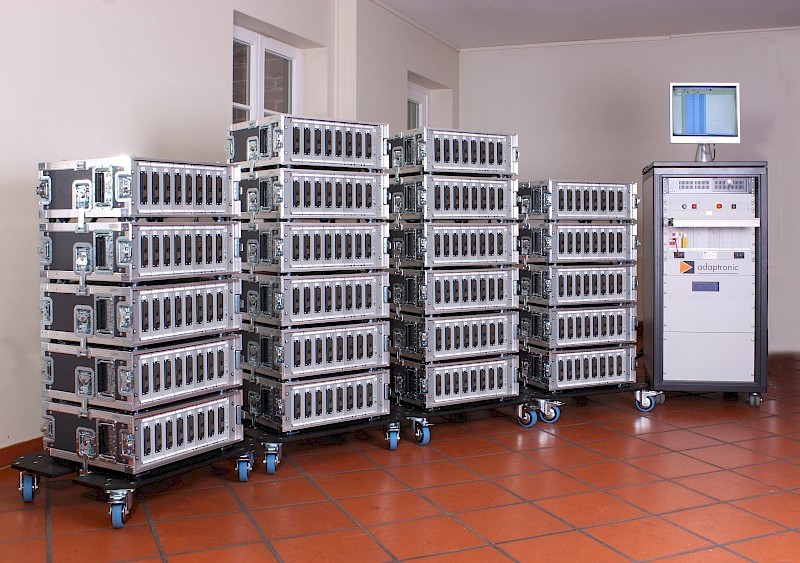

NT 800-1 High Voltage Distributed Test
System design:
- Distributed test systems consist of a base unit (control unit and measurement electronics) and TPUs (Test Point Units) which contain the test points. Remote controlled TPUs can be arranged as satellites around the UUT.
- High modularity in hardware and software
- Test points can be added at a later date – "plug and play" principle
- Large variety of application specific test point interfaces
System benefits:
- Reduction of serial production costs
- High degree of automation in test program generation
- Verifiable coverage of relevant standards, e.g. DIN EN 2283
- Reduction of adapter cable lengths by up to 70%
Usage especially for the test of large scale UUTs:
- Pre- and final-assembly of aerospace vehicles like airplanes, helicopters and satellites
- Supplying industry of components like fuselage parts, wings, tail planes, galleys and their (sub-) cable harnesses
- Flexible usage inside the test facility; centralised and decentralised arrangement of TPUs possible
Specification Value System Architecture Distributed (base unit + remote TPUs) Expandability Plug and play test point expansion Standards Compliance DIN EN 2283 Cable Length Reduction Up to 70% Primary Application Aerospace, large scale UUT testing Bus Systems ProfiNet, LIN, CAN, Mod-Bus TCP (others on request)
System design:
- Distributed test systems consist of a base unit (control unit and measurement electronics) and TPUs (Test Point Units) which contain the test points. Remote controlled TPUs can be arranged as satellites around the UUT.
- High modularity in hardware and software
- Test points can be added at a later date – "plug and play" principle
- Large variety of application specific test point interfaces
System benefits:
- Reduction of serial production costs
- High degree of automation in test program generation
- Verifiable coverage of relevant standards, e.g. DIN EN 2283
- Reduction of adapter cable lengths by up to 70%
Usage especially for the test of large scale UUTs:
- Pre- and final-assembly of aerospace vehicles like airplanes, helicopters and satellites
- Supplying industry of components like fuselage parts, wings, tail planes, galleys and their (sub-) cable harnesses
- Flexible usage inside the test facility; centralised and decentralised arrangement of TPUs possible
| Specification | Value |
|---|---|
| System Architecture | Distributed (base unit + remote TPUs) |
| Expandability | Plug and play test point expansion |
| Standards Compliance | DIN EN 2283 |
| Cable Length Reduction | Up to 70% |
| Primary Application | Aerospace, large scale UUT testing |
| Bus Systems | ProfiNet, LIN, CAN, Mod-Bus TCP (others on request) |
