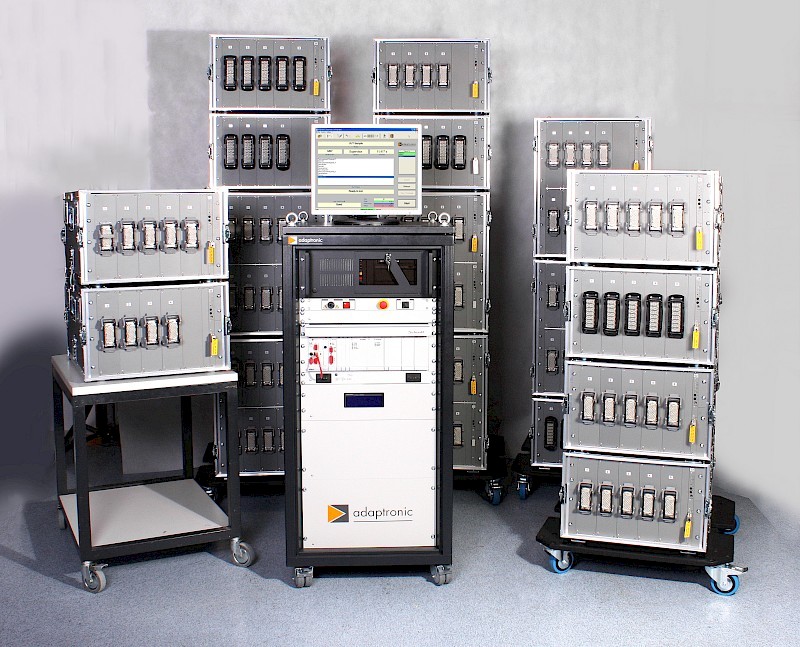

NT 800-2 High Voltage Distributed Test
System design:
- Distributed test systems consist of a base unit (control unit and measurement electronics) and TPUs (Test Point Units) which contain the test points. Remote controlled TPUs can be arranged as satellites around the UUT.
- High modularity in hardware and software
- Test points can be added at a later date – "plug and play" principle
- Large variety of application specific test point interfaces
System benefits:
- Process optimisation by reduction of cycle times and track occupation time
- Reduction of serial production costs
- Verifiable coverage of relevant standards, e.g. DIN EN 50343 / EN 50155
- Reduction of adapter cable lengths by up to 70%
Usage especially for the test of large scale UUTs:
- Pre-fabrication and initial operation of railcars, locomotives, coupled carriages etc.
- Supplying industry with vehicle components like cable ducts, switchboards, mounting plates, driver desks etc.
- Flexible usage inside the test facility; centralised and decentralised arrangement of TPUs possible
Specification Value System Architecture Distributed (base unit + remote TPUs) Expandability Plug and play test point expansion Standards Compliance DIN EN 50343 / EN 50155 Cable Length Reduction Up to 70% Primary Application Rail industry, large scale UUT testing Bus Systems ProfiNet, LIN, CAN, Mod-Bus TCP (others on request)
System design:
- Distributed test systems consist of a base unit (control unit and measurement electronics) and TPUs (Test Point Units) which contain the test points. Remote controlled TPUs can be arranged as satellites around the UUT.
- High modularity in hardware and software
- Test points can be added at a later date – "plug and play" principle
- Large variety of application specific test point interfaces
System benefits:
- Process optimisation by reduction of cycle times and track occupation time
- Reduction of serial production costs
- Verifiable coverage of relevant standards, e.g. DIN EN 50343 / EN 50155
- Reduction of adapter cable lengths by up to 70%
Usage especially for the test of large scale UUTs:
- Pre-fabrication and initial operation of railcars, locomotives, coupled carriages etc.
- Supplying industry with vehicle components like cable ducts, switchboards, mounting plates, driver desks etc.
- Flexible usage inside the test facility; centralised and decentralised arrangement of TPUs possible
| Specification | Value |
|---|---|
| System Architecture | Distributed (base unit + remote TPUs) |
| Expandability | Plug and play test point expansion |
| Standards Compliance | DIN EN 50343 / EN 50155 |
| Cable Length Reduction | Up to 70% |
| Primary Application | Rail industry, large scale UUT testing |
| Bus Systems | ProfiNet, LIN, CAN, Mod-Bus TCP (others on request) |
