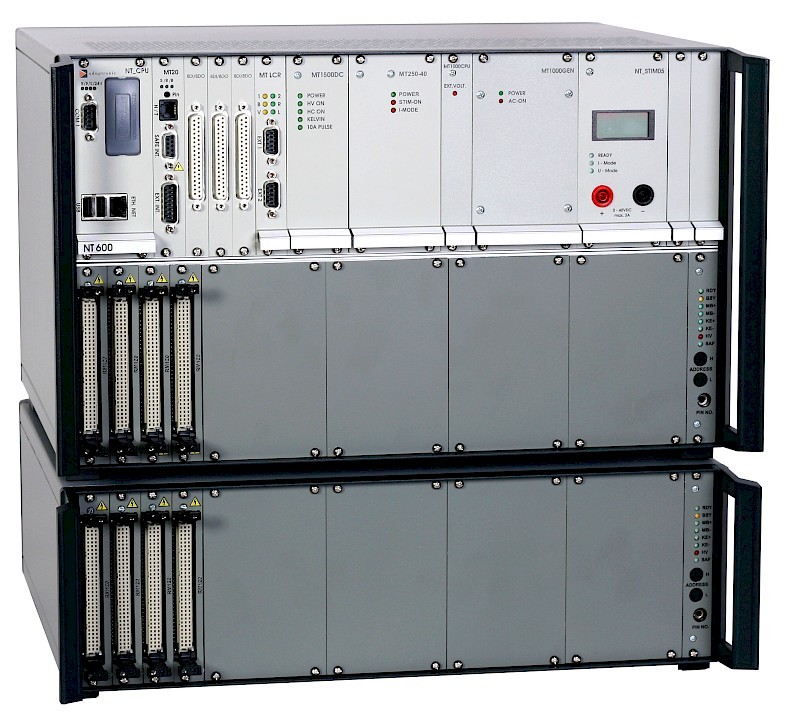

NT600 High Voltage Modular Cable Tester
- Easy operation via PC with comprehensive control software via "NT Control"
- Extensive result reporting to file, to printer or via database connection*
- Extensive GUI display possibilities and tools for fault location in the unit under test (UUT)
- Remote maintenance
The NT 600 is a powerful, entry-level high voltage tester that is highly flexible allowing expansion for future capability or when budget allows:
- Low start-up investment costs as well as low ongoing cost
- Easily expandable: additional measurement electronics (AC/DC), LCR measurement bridge, test point expansion via TPUs
- Four-wire measurement from 100 µOhm upwards
- Insulation tests up to 10 G Ohm as standard
- Automatic harness test table support
- Total integration of camera systems for visual tests
- ProfiNet, LIN-, CAN-, Mod-Bus TCP, other bus systems on request
Specification Value Test Points (base unit) Up to 1024 Test Points (expanded) Up to 5,120 Base Test Voltage Up to 25 VDC High Voltage Test (optional) 1500 V DC DWV Test (optional) Up to 1050 VAC / 1500 VDC Max Current (optional) 2 A DC Insulation Test Up to 10 G Ohm Four-wire Measurement From 100 µOhm Test Types Continuity, short circuit, component, insulation, DWV Bus Systems ProfiNet, LIN, CAN, Mod-Bus TCP (others on request)
- Easy operation via PC with comprehensive control software via "NT Control"
- Extensive result reporting to file, to printer or via database connection*
- Extensive GUI display possibilities and tools for fault location in the unit under test (UUT)
- Remote maintenance
The NT 600 is a powerful, entry-level high voltage tester that is highly flexible allowing expansion for future capability or when budget allows:
- Low start-up investment costs as well as low ongoing cost
- Easily expandable: additional measurement electronics (AC/DC), LCR measurement bridge, test point expansion via TPUs
- Four-wire measurement from 100 µOhm upwards
- Insulation tests up to 10 G Ohm as standard
- Automatic harness test table support
- Total integration of camera systems for visual tests
- ProfiNet, LIN-, CAN-, Mod-Bus TCP, other bus systems on request
| Specification | Value |
|---|---|
| Test Points (base unit) | Up to 1024 |
| Test Points (expanded) | Up to 5,120 |
| Base Test Voltage | Up to 25 VDC |
| High Voltage Test (optional) | 1500 V DC |
| DWV Test (optional) | Up to 1050 VAC / 1500 VDC |
| Max Current (optional) | 2 A DC |
| Insulation Test | Up to 10 G Ohm |
| Four-wire Measurement | From 100 µOhm |
| Test Types | Continuity, short circuit, component, insulation, DWV |
| Bus Systems | ProfiNet, LIN, CAN, Mod-Bus TCP (others on request) |
