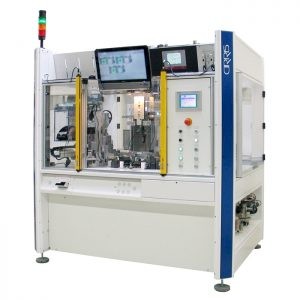

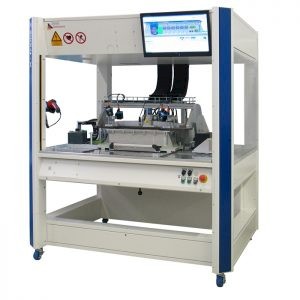

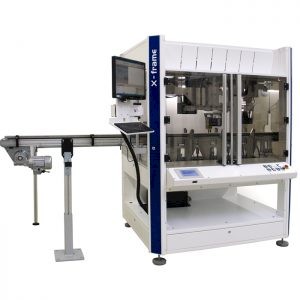

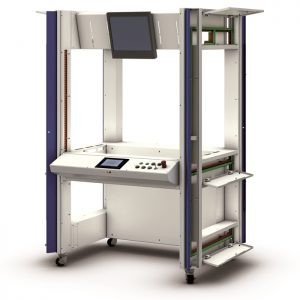

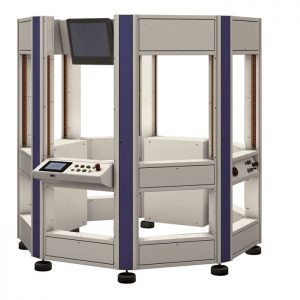

X-Frame Machine Frames

X-frame from Haewa – exclusively sold through Combined Test Solutions Ltd – has been setting new standards for machine and system building since 2008 with its revolutionary modular machine frame system, protected by a European patent.

Conventional machine frames use aluminium profiles requiring several days in design and assembly. X-frame delivers the same flexibility but far more efficiently — components are precision-made from steel and assembled in Haewa's factory in Germany into a highly professional, immensely strong chassis.

• Patented modular system — designed and manufactured in Germany since 2008
• All cabling, wiring and pneumatics are built into internal channels running throughout the frame struts
• Multiple strut variants: Light (narrow systems), Standard 1.5 mm (up to 1 ton load), Pro-X 3 mm (higher loads), Robot 13 mm (high torque/dynamic applications), and Welding frames (highest precision)
• FEM calculations available for systems with high static and dynamic requirements
• UL certified — simplifies market entry and acceptance in the USA and Canada
• Earthing bolts on all standard components; conductive surfaces throughout
• Subsystems available: door systems, integrated control cabinet systems, security systems (light curtains, laser protection), and support arm systems
• Ergonomic design with powder-coated or stainless steel surfaces; custom colour and branding selectable
• Procurement via a choice of standard parts — fast from CAD to delivery
