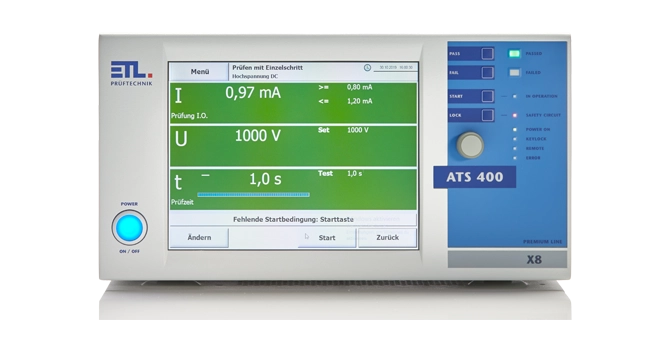

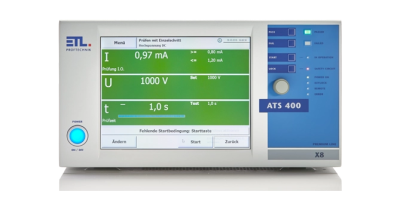

ATS400 Machinery Tester
SKU: 201903
The ATS400 is an automatic testing system designed for efficient and safe electrical safety testing of machines and control cabinets. It combines high-voltage AC testing, insulation resistance testing, and protective earth testing in a single modular platform, with a TÜV-certified safety circuit and CE compliance to BS/EN 50191.
- Designed for testing machines, control cabinets, and complex assemblies
- Test mode with predefined test points and step-by-step operator instructions
- Multi-test mode for variable, flexible test points

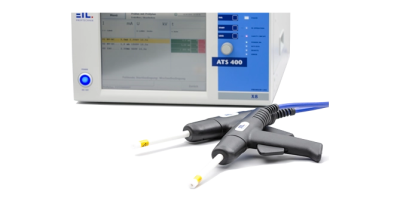

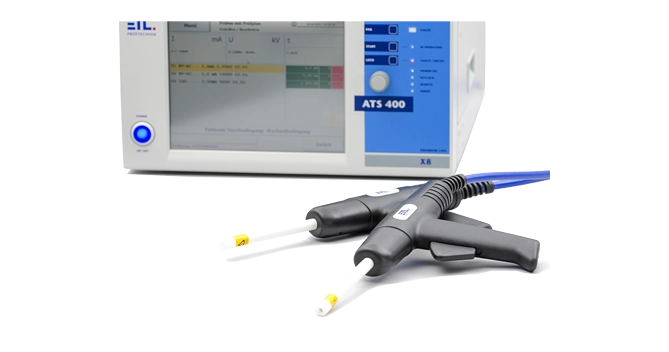

- Test pistols with automatic start function — voltage-free until safe contact is established; voltage drops immediately on removal
- Efficient PE testing via handheld test probe across all relevant contact points
- 5 user interface variants (X2, X4, X5, X6, X8) — from remote-control-only to Windows-based with 10.4" touch display

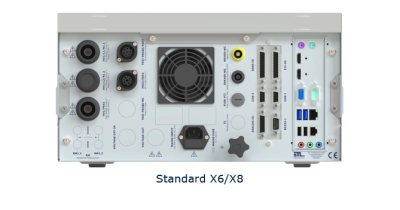

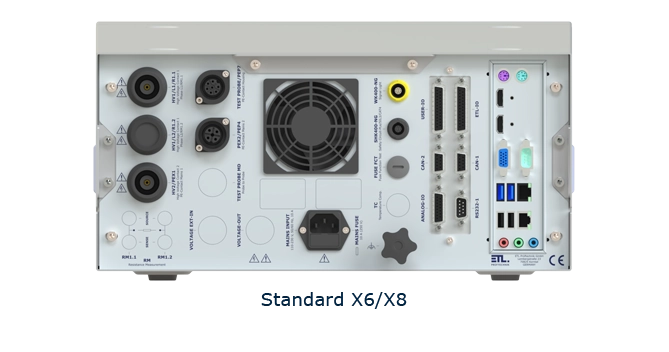

- Interfaces: LAN, USB, RS232, CAN, VGA, Digital I/O, Analogue I/O, PROFINET RT, Frequency I/O (variant dependent)
- Extension modules: relay matrix, AC/DC sources, hot HV, contacting units
- Only system with TÜV-certified safety circuit up to Performance Level e (PLe)
- Additional PEP4 socket for independent PE testing of mains terminal, separated from HV/ISO testing
- DAkkS calibration available as option
| Specification | Value |
|---|---|
| HV AC test voltage range | 100–5000 V AC |
| HV AC output frequency | 45.0–65.0 Hz (0.1 Hz resolution) |
| HV AC max trip current | 0.1–100.0 mA |
| HV AC max output power | >500 VA |
| HV AC test time range | 0.5 s–6000 s |
| ISO DC test voltage range | 50–1000 V DC |
| ISO resistance range | 0.50–400 MΩ (opt. 10 GΩ) |
| ISO current limitation | <12 mA (CE/EN 50191) |
| PE test current range | 2.0–25.0 A AC/DC (opt. up to 40 A) |
| PE resistance range | 1–500 mΩ |
| PE open circuit voltage | 6–12 V |
| PE measurement method | 4-wire (Kelvin) |
| Input voltage | 230 V, 50/60 Hz ±10% |
| Max current consumption | 10 A |
| Housing dimensions (W×H×D) | 400 × 210 × 446 mm (short case) |
| Weight | 25–35 kg (depending on modules) |
| IP rating | IP20 |
| Operating temperature | +5 to +40 °C |
| Max altitude | 2000 m |
| Safety certification | TÜV-certified safety circuit to PLe (EN ISO 13849-1) |
| Standards | EN 61010-1, EN 61326-1, EN 50191, EN 61000-3-2/3-3 |
| Contacting system | CCG |
